AMP330
In line strain gages amplifier

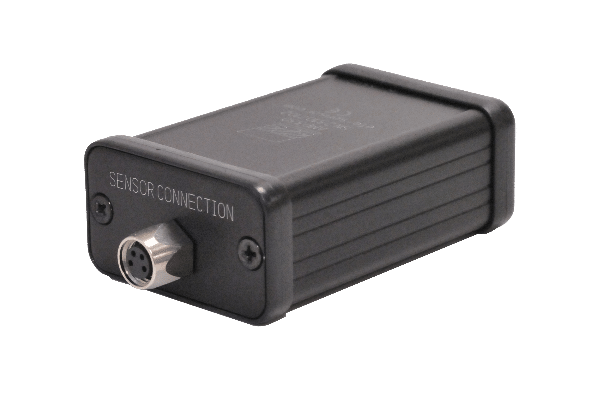

The AMP330 is a precision signal conditioner
  • Delivers both tension and current output
  • Robust, compact and light
  • Metallic housing
  • Bandwidth (-3dB) : DC up to 10kHz
The AMP330 is a precision signal conditioner. It amplifies the low level signal (mV/V) of any strain gauge bridge transducer (pressure, force, torque, displacement) into a high level voltage (up to ±10Vdc) and/or current (4-20mA) signal. Operating from 14 to 26Vdc, it supplies the associated sensor with 5 or 10Vdc regulated power and enables low level signals between 0.5 and 10mV/V to be conditioned. With a bandwidth@-3dB from 1kHz (standard) to 10kHz (option), it is suitable for the most dynamic applications. Zero, gain and signal (voltage or current) settings are accessible to the user.Its compact metal housing makes it particularly suitable for use in mobile applications.

Model

Model
Input signal
Sensor's power supply
PDF
AMP330
Bipolar 4 or 6 wire Wheatstone bridge, 0.5 to 10mV/V
5 or 10Vdc
Documents to download
Document's type
Datasheet - In line strain gages amplifier - AMP330.pdf
130.94 Ko
User Guide - In line strain gages amplifier - AMP330.pdf
337.23 Ko
3D mockup - In line strain gages amplifier - AMP330.STEP
5.86 Mo
Technical specifications
Product category
Amplifier
Power supply
14 to 26Vdc
Consumption
30mA
Sensor's power supply
5 or 10Vdc
Input signal
Bipolar 4 or 6 wire Wheatstone bridge, 0.5 to 10mV/V
Analogue output
±10Vdc
0-16 mA, 0-20 mA, 4-20 mA (default), and 5-25 mA
Signal bandwidth
1000Hz @ -3dB
10kHz @ -3dB (for sensitivity of at least 1mV/V)
Operating temperature range
0 to +70°C
Electrical connection
Connector Binder M8 male 768-718 Series
