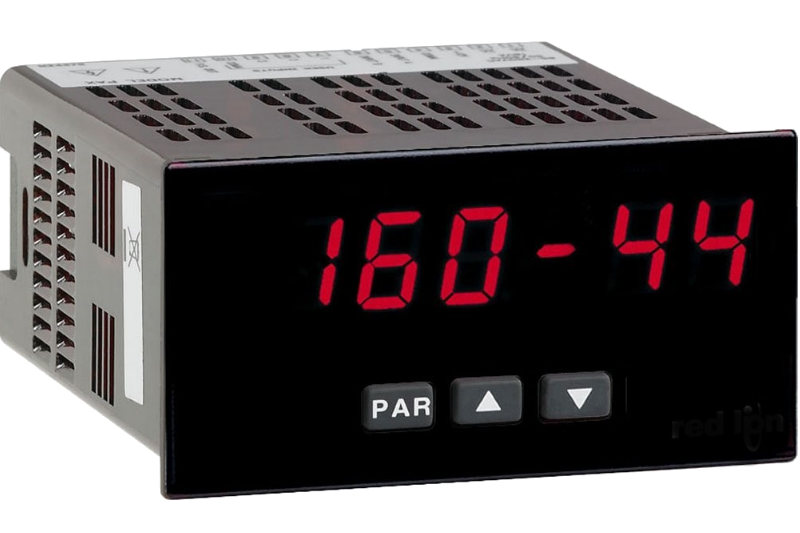

MICRO200

Universal Display

The MICRO200 represents a complete family of panel displays. Available models cover both analogue process inputs (typically 0-10V or 4-20mA), strain gauges (low level mV/V sensors) and thermocouple/RTD inputs. The MICRO200 has a very compact case, a five or six digit red readable display and an IP65 protection rating, making it suitable for various applications such as test benches, mobile equipments, etc. The MICRO200 allows the installation of up to three optional cards to provide analogue outputs (0-10V, 4-20mA) or digital outputs such as Modbus, RS-232, RS-485, DeviceNet or Profibus. Two or four relay cards are also available. The MICRO200 is available with 250V power supply as standard and 11 to 36Vdc / 24Vac as an option.
