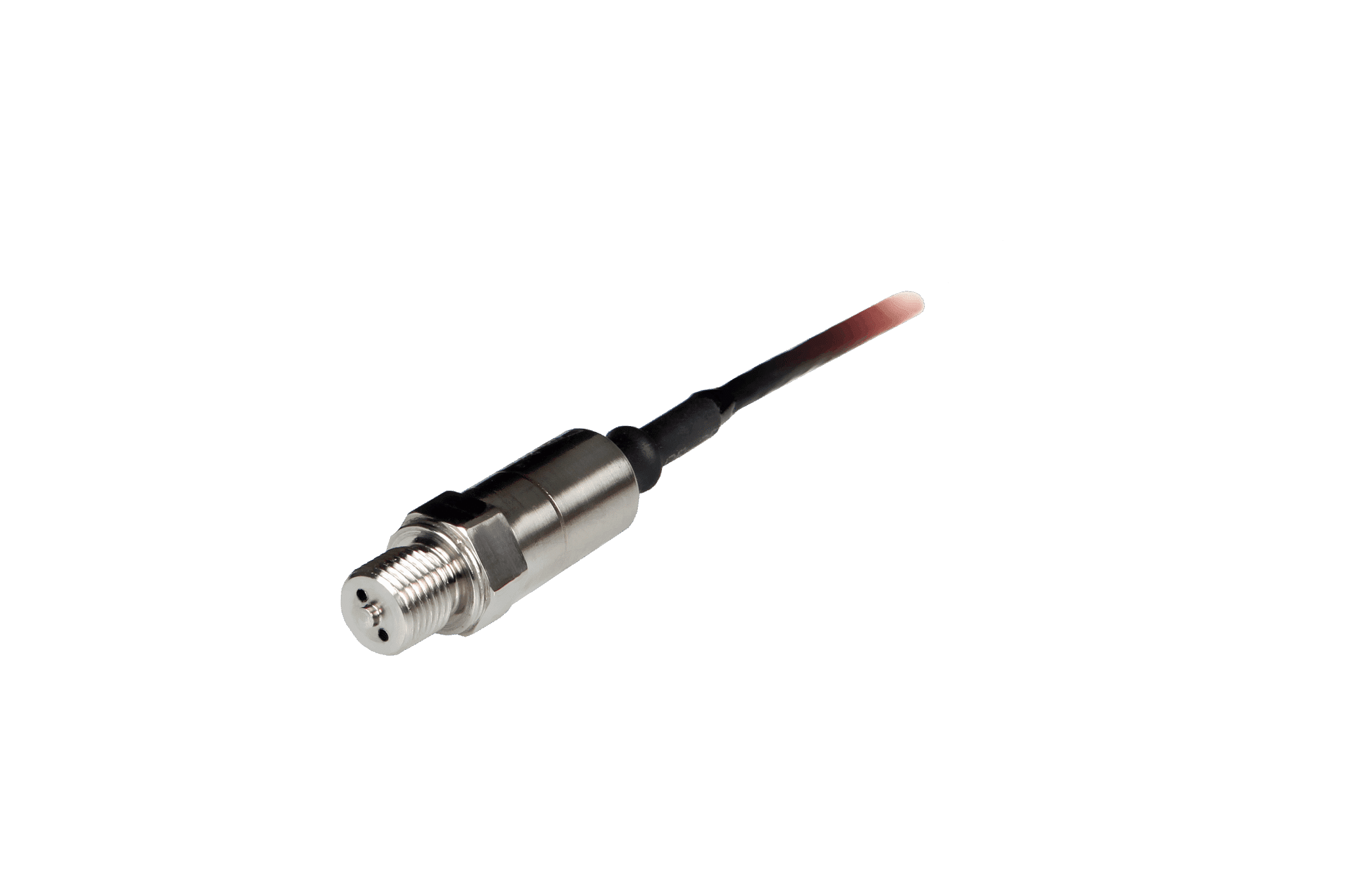

PCM120
Sub-Miniature Pressure and Temperature Transducer

The PCM120 series pressure sensors allow a combined pressure and temperature measurements at a same location
  • Pressure & temperature combined
  • Miniature and light all stainless steel sensor
  • Temperature output
  • Built-in electronic 0.5-4.5Vdc
The PCM120 series pressure sensors allow a combined pressure and temperature measurements at a same location. Wetted parts being all stainless steel, they are compatible with all common and hostile pressure media used in aerospace and automotive. Miniature dimensions, low mass and ruggedized design make PCM120 series pressure sensors well adapted to embedded applications on vehicules, aircrafts, missiles, satellites, etc. The pressure transducer utilizes EFE thin film technology and a platinum RTD senses media temperature. The pressure and temperature devices are designed to operate independently. Output for pressure is an amplified 0.5-4.5Vdc while temperature signal is directly the one from PT1000 sensor.

Solutions:

Model

Model
Power supply
Output Signal
Consumption
PDF
PCM123
5Vdc ± 10mV
0.5-4.5Vdc regulated power supply
< 10mA
PCM127
8 to 16Vdc
0.5-4.5Vdc unregulated power supply
< 10mA
Documents to download
Document's type
Datasheet - Sub-Miniature Pressure and Temperature Transducer - PCM123.pdf
908.12 Ko
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
Technical specifications
Product category
Miniature Sensors
Specialty Sensors
Power supply
5Vdc ± 10mV
Offset
0.5Vdc ±0.05
Sensitivity
4Vdc ±0.05
Pressure ranges (FS)
-1/+4bar
5bar
-1/+9bar
10bar
20bar
40bar
70bar
250bar
-14.5/+60PSI
70PSI
-14.5/+140PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
Type
Absolute
Gage
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
M10x1-4h male with thermal probe
M8x1-6g male with thermal probe
Electrical connection
AWG26 shielded Teflon cable Ø3.4mm ±0.2, 5 wires
Compensated temperature range
0 to +60°C
-25 to +85°C
-25 to +125°C
-40 to +125°C
Combined thermal zero & sensitivity shifts
±0.02% FS/°C
±0.01% FS/°C
Size
Miniature
Diameter
12.7mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Non linearity and hysteresis combined
±0.25% FS
±0.1% FS
Documents to download
Document's type
Datasheet - Sub-Miniature Pressure and Temperature Transducer - PCM127.pdf
907.97 Ko
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
3D mockup - - PCM127_29-09.STEP
196.41 Ko
Technical specifications
Product category
Miniature Sensors
Specialty Sensors
Power supply
8 to 16Vdc
Offset
0.5Vdc ±0.05
Sensitivity
4Vdc ±0.05
Pressure ranges (FS)
-1/+4bar
5bar
-1/+9bar
10bar
20bar
40bar
70bar
250bar
-14.5/+60PSI
70PSI
-14.5/+140PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
Type
Absolute
Gage
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
M10x1-4h male with thermal probe
M8x1-6g male with thermal probe
Electrical connection
AWG26 shielded Teflon cable Ø3.4mm ±0.2, 5 wires
Compensated temperature range
0 to +60°C
-25 to +85°C
-25 to +125°C
-40 to +125°C
Combined thermal zero & sensitivity shifts
±0.02% FS/°C
±0.01% FS/°C
Size
Miniature
Diameter
12.7mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Non linearity and hysteresis combined
±0.25% FS
±0.1% FS
