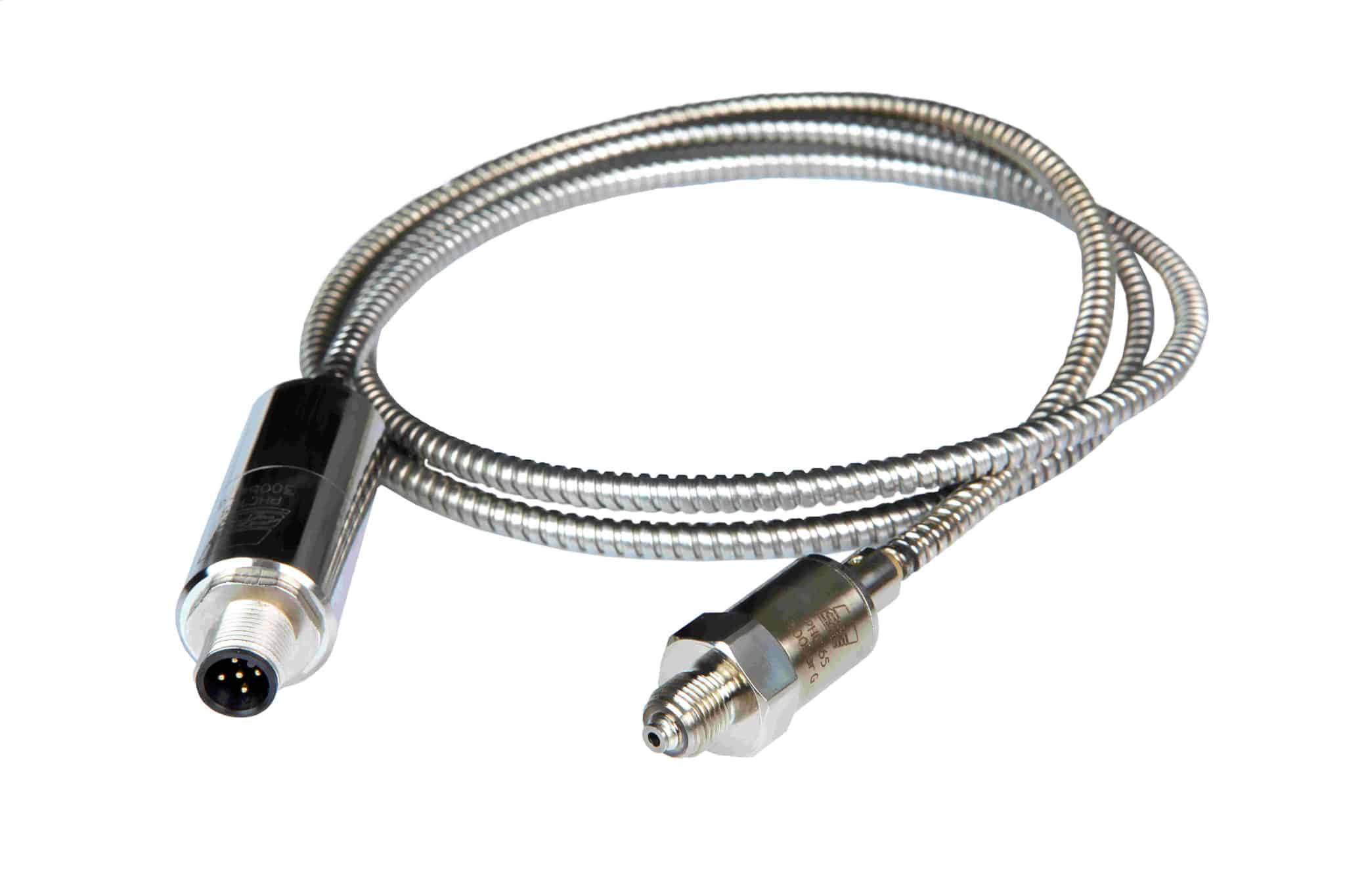

PET160
Extreme Temperature Pressure Sensor

Operating up to 250°C, PET160 is a ruggedized pressure sensor dedicated to extreme temperature
  • All Stainless steel
  • Miniature pressure sensor
  • Optional remote electronic
  • Operating from -20 to +250°C
Operating up to 250°C, PET160 is a ruggedized pressure sensor dedicated to extreme temperature. With all stainless steel wetted parts, It is compatible with most media, including corrosive fluids used in automotive and aerospace industries. Equipped with the latest thin film technology developed by EFE, its performances and stability over wide temperature range are excellent. Models are available with unamplified and voltage outputs, thanks to a remote electronic module, packaged in a miniature stainless steel housing, fitted in the cable and operating up to 125°C.

Solutions:

Model

Model
Power supply
Output Signal
Consumption
PDF
PET161
5 to 15Vdc
mV/V
< 10mA
PET163
5Vdc ± 10mV
0.5-4.5Vdc regulated power supply
< 10mA
PET164
8 to 30Vdc
0-5Vdc
< 10mA
PET167
8 to 16Vdc
0.5-4.5Vdc unregulated power supply
< 10mA
Documents to download
Document's type
Datasheet - Extreme Temperature Pressure Sensor - PET161.pdf
1.06 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
Technical specifications
Product category
Miniature Sensors
Harsh Environment Sensors
Power supply
5 to 15Vdc
Offset
±3%FS
Sensitivity
1 to 2mV/V
Pressure ranges (FS)
10bar
20bar
40bar
100bar
250bar
400bar
600bar
300PSI
500PSI
1500PSI
3000PSI
5000PSI
10000PSI
Type
Gage
Mechanical connection
M10x1-4h male
3/8-24 UNF-3A male
Compensated temperature range
+20 to +250°C
Combined thermal zero & sensitivity shifts
±0.03% FS/°C
Size
Miniature
Diameter
16.6mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Non linearity and hysteresis combined
±0.25% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - Extreme Temperature Pressure Sensor - PET163.pdf
1.06 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
Technical specifications
Product category
Miniature Sensors
Harsh Environment Sensors
Power supply
5Vdc ± 10mV
Offset
0.5Vdc ±0.05
Sensitivity
4Vdc ±0.05
Pressure ranges (FS)
10bar
20bar
40bar
100bar
250bar
400bar
600bar
300PSI
500PSI
1500PSI
3000PSI
5000PSI
10000PSI
Type
Gage
Mechanical connection
M10x1-4h male
3/8-24 UNF-3A male
Compensated temperature range
+20 to +250°C
Combined thermal zero & sensitivity shifts
±0.03% FS/°C
Size
Miniature
Diameter
16.6mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Signal bandwidth
DC to 1000Hz @ -3dB
Non linearity and hysteresis combined
±0.25% FS
±0.1% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - Extreme Temperature Pressure Sensor - PET164.pdf
1.06 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
Technical specifications
Product category
Miniature Sensors
Harsh Environment Sensors
Power supply
8 to 30Vdc
Offset
0Vdc ± 0.05Vdc
Sensitivity
5Vdc ± 0.05Vdc
Pressure ranges (FS)
10bar
20bar
40bar
100bar
250bar
400bar
600bar
300PSI
500PSI
1500PSI
3000PSI
5000PSI
10000PSI
Type
Gage
Mechanical connection
M10x1-4h male
3/8-24 UNF-3A male
Compensated temperature range
+20 to +250°C
Combined thermal zero & sensitivity shifts
±0.03% FS/°C
Size
Miniature
Diameter
16.6mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Signal bandwidth
DC to 1000Hz @ -3dB
Non linearity and hysteresis combined
±0.25% FS
±0.1% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - Extreme Temperature Pressure Sensor - PET167.pdf
1.06 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
Technical specifications
Product category
Miniature Sensors
Harsh Environment Sensors
Power supply
8 to 16Vdc
Offset
0.5Vdc ±0.05
Sensitivity
4Vdc ±0.05
Pressure ranges (FS)
10bar
20bar
40bar
100bar
250bar
400bar
600bar
300PSI
500PSI
1500PSI
3000PSI
5000PSI
10000PSI
Type
Gage
Mechanical connection
M10x1-4h male
3/8-24 UNF-3A male
Compensated temperature range
+20 to +250°C
Combined thermal zero & sensitivity shifts
±0.03% FS/°C
Size
Miniature
Diameter
16.6mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Signal bandwidth
DC to 1000Hz @ -3dB
Special Adjustment up to 3000Hz @ -3dB
Non linearity and hysteresis combined
±0.25% FS
±0.1% FS
Non repeatability
±0.02% FS typ.
