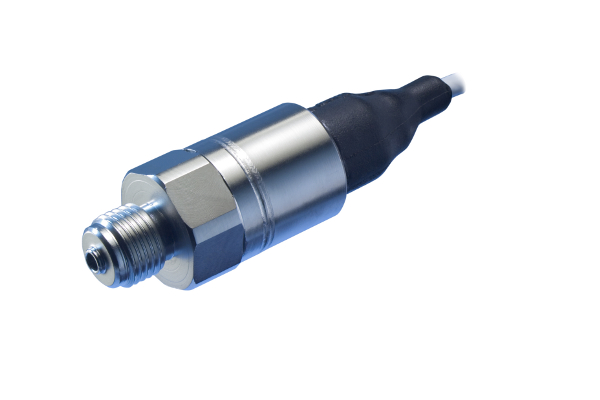

PHT160
High Temperature Miniature Pressure Sensor

Operating from –40 up to +175°C, the PHT160 series is dedicated to high temperature pressure measurements
  • Available with 0,5-4,5Vdc output
  • Miniature pressure sensor
  • Operating from -40 to +175°C
  • Large Bandwidth
Operating from –40 up to +175°C, the PHT160 series is dedicated to high temperature pressure measurements. With all stainless steel wetted parts, it is compatible with most media, including corrosive fluids used in automotive, aerospace and energy industries. Equipped with the premium thin film technology developed by EFE, its performances and stability over wide temperature range are excellent. The PHT160 is available with unamplified output (mV/V), compensated in temperature to deliver the best accuracy. Amplified output (Vdc) is also standard, thanks to a high performance and ruggedized built-in electronic module.

Solutions:

Model

Model
Power supply
Output Signal
Consumption
PDF
PHT161
5 to 15Vdc
mV/V
< 10mA
PHT163
5Vdc ± 10mV
0.5-4.5Vdc regulated power supply
< 10mA
PHT167
8 to 16Vdc
0.5-4.5Vdc unregulated power supply
< 10mA
Documents to download
Document's type
Datasheet - High Temperature Miniature Pressure Sensor - PHT161.pdf
1.34 Mo
3D mockup - High Temperature Miniature Pressure Sensor 11-03 - PHT161_11-03.STEP
358.69 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-09S - PHT161_02-09S.STEP
192.65 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-08 - PHT161_02-08.STEP
184.46 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-05 - PHT161_02-05.STEP
247.92 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-03 - PHT161_02-03.STEP
366.72 Ko
3D mockup - High Temperature Miniature Pressure Sensor 11-09S - PHT161_11-09S.STEP
197.91 Ko
3D mockup - High Temperature Miniature Pressure Sensor 11-08 - PHT161_11-08.STEP
189.65 Ko
3D mockup - High Temperature Miniature Pressure Sensor 11-05 - PHT161_11-05.STEP
253.15 Ko
Technical specifications
Product category
High Performance Sensors
Harsh Environment Sensors
Miniature Sensors
Power supply
5 to 15Vdc
Offset
±3%FS
Sensitivity
1.5mV/V ±3%FS
Pressure ranges (FS)
-1/+4bar
5bar
-1/+9bar
10bar
20bar
40bar
100bar
250bar
400bar
30PSI
-14.5/+60PSI
70PSI
-14.5/+140PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
Type
Absolute
Gage
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
3/8-24 UNF-3A male
M10x1-4h male
M8x1-6g male
Swagelok nut SS-6M2-1 for OD 6mm pipe
Electrical connection above 150°C
AWG26 shielded Teflon cable Ø3.4mm ±0.2, 5 wires
DEUTSCH Autosport AS4H06-05-PN-HE connector
Electrical connection up to 150°C
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
DEUTSCH Autosport AS4H06-05-PN-HE connector
Compensated temperature range
-30 to +150°C
0 to +175°C
Combined thermal zero & sensitivity shifts
±0.02% FS/°C
±0.01% FS/°C
Size
Miniature
Diameter
16.6mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Non linearity and hysteresis combined
±0.25% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - High Temperature Miniature Pressure Sensor - PHT163.pdf
1.33 Mo
3D mockup - High Temperature Miniature Pressure Sensor 11-03 - PHT163_11-03.STEP
358.69 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-09S - PHT163_02-09S.STEP
192.65 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-08 - PHT163_02-08.STEP
184.46 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-05 - PHT163_02-05.STEP
247.92 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-03 - PHT163_02-03.STEP
366.72 Ko
3D mockup - High Temperature Miniature Pressure Sensor 11-09S - PHT163_11-09S.STEP
197.91 Ko
3D mockup - High Temperature Miniature Pressure Sensor 11-08 - PHT163_11-08.STEP
189.65 Ko
3D mockup - High Temperature Miniature Pressure Sensor 11-05 - PHT163_11-05.STEP
253.15 Ko
Technical specifications
Product category
High Performance Sensors
Harsh Environment Sensors
Miniature Sensors
Power supply
5Vdc ± 10mV
Offset
0.5Vdc ±0.05
Sensitivity
4Vdc ±0.05
Pressure ranges (FS)
-1/+4bar
5bar
-1/+9bar
10bar
20bar
40bar
100bar
250bar
400bar
30PSI
-14.5/+60PSI
70PSI
-14.5/+140PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
Type
Absolute
Gage
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
3/8-24 UNF-3A male
M10x1-4h male
M8x1-6g male
Swagelok nut SS-6M2-1 for OD 6mm pipe
Electrical connection above 150°C
AWG26 shielded Teflon cable Ø3.4mm ±0.2, 5 wires
DEUTSCH Autosport AS4H06-05-PN-HE connector
Electrical connection up to 150°C
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
DEUTSCH Autosport AS4H06-05-PN-HE connector
Compensated temperature range
-30 to +150°C
0 to +175°C
Combined thermal zero & sensitivity shifts
±0.02% FS/°C
Size
Miniature
Diameter
16.6mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Signal bandwidth
DC to 1000Hz @ -3dB
Special Adjustment up to 3000Hz @ -3dB
Non linearity and hysteresis combined
±0.25% FS
±0.1% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - High Temperature Miniature Pressure Sensor - PHT167.pdf
1.33 Mo
3D mockup - High Temperature Miniature Pressure Sensor 11-03 - PHT167_11-03.STEP
358.69 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-09S - PHT167_02-09S.STEP
192.65 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-08 - PHT167_02-08.STEP
184.46 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-05 - PHT167_02-05.STEP
247.92 Ko
3D mockup - High Temperature Miniature Pressure Sensor 02-03 - PHT167_02-03.STEP
366.72 Ko
3D mockup - High Temperature Miniature Pressure Sensor 11-09S - PHT167_11-09S.STEP
197.91 Ko
3D mockup - High Temperature Miniature Pressure Sensor 11-08 - PHT167_11-08.STEP
189.65 Ko
3D mockup - High Temperature Miniature Pressure Sensor 11-05 - PHT167_11-05.STEP
253.15 Ko
Technical specifications
Product category
High Performance Sensors
Harsh Environment Sensors
Miniature Sensors
Power supply
8 to 16Vdc
Offset
0.5Vdc ±0.05
Sensitivity
4Vdc ±0.05
Pressure ranges (FS)
-1/+4bar
5bar
-1/+9bar
10bar
20bar
40bar
100bar
250bar
400bar
30PSI
-14.5/+60PSI
70PSI
-14.5/+140PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
Type
Absolute
Gage
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
3/8-24 UNF-3A male
M10x1-4h male
M8x1-6g male
Swagelok nut SS-6M2-1 for OD 6mm pipe
Electrical connection above 150°C
AWG26 shielded Teflon cable Ø3.4mm ±0.2, 5 wires
DEUTSCH Autosport AS4H06-05-PN-HE connector
Electrical connection up to 150°C
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
DEUTSCH Autosport AS4H06-05-PN-HE connector
Compensated temperature range
-30 to +150°C
0 to +175°C
Combined thermal zero & sensitivity shifts
±0.02% FS/°C
Size
Miniature
Diameter
16.6mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Signal bandwidth
DC to 1000Hz @ -3dB
Special Adjustment up to 3000Hz @ -3dB
Non linearity and hysteresis combined
±0.25% FS
±0.1% FS
Non repeatability
±0.02% FS typ.
