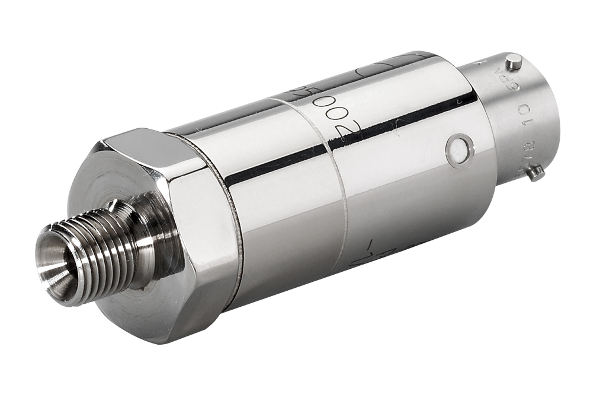

PHE220
Compact Pressure Transducer for Harsh Environment

The PHE220 series is designed to operate in the harshest environments, including wide operating temperature, mechanical shocks and vibrations
  • All Stainless steel
  • Robust and reliable sensor
  • Low thermal shifts
  • Large Bandwidth
The PHE220 series is designed to operate in the harshest environments, including wide operating temperature, mechanical shocks and vibrations. It is well adapted to embedded measurements, on vehicles, aircrafts or satellites. With pressure ranges available from -1 up to 600 bar, absolute or gage, its all stainless steel construction makes it usable with most fluids used in industry, even corrosive ones. The PHE220 is manufactured with the ruggedized and premium sensitive elements and components developed by EFE. Its manufacturing process, including traceable controls and special burn-in, gives the best insurance of high performance and stability in the most challenging applications. The choice of mechanical threads and electrical connections makes its installation easier.

Solutions:

Model

Model
Power supply
Output Signal
Consumption
PDF
PHE221
5 to 15Vdc
mV/V
< 10mA
PHE224
8 to 30Vdc
0-5Vdc
< 10mA
PHE227
8 to 30Vdc
0.5-4.5Vdc unregulated power supply
< 10mA
Documents to download
Document's type
Datasheet - Compact Pressure Transducer for Harsh Environment - PHE221.pdf
1.21 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 13-03 - PHE221_13-03.STEP
720.52 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 10A-08 - PHE221_10A-08.STEP
9.05 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 10A-03 - PHE221_10A-03.STEP
743.78 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 01-08 - PHE221_01-08.STEP
9.04 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 21-08 - PHE221_21-08.STEP
9.04 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 01-03 - PHE221_01-03.STEP
727.53 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 21-03 - PHE221_21-03.STEP
727.97 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 19-08 - PHE221_19-08.STEP
9.04 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 19-03 - PHE221_19-03.STEP
725.89 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 13-08 - PHE221_13-08.STEP
9.03 Mo
Technical specifications
Product category
High Performance Sensors
Harsh Environment Sensors
Power supply
5 to 15Vdc
Offset
±3%FS
Sensitivity (FS < 3bar)
3 to 10mV/V
Sensitivity (FS >= 3bar)
1 to 3mV/V
Pressure ranges (FS)
±100mbar
±250mbar
±500mbar
±1bar
2bar
5bar
10bar
20bar
40bar
100bar
250bar
400bar
600bar
±1.5PSI
±3.5PSI
±7PSI
±14.5PSI
30PSI
40PSI
70PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
8000PSI
Type
Absolute
Gage
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
1/4 Gaz A male
1/4 NPT male
M14x1.5-4h male
1/4 Gaz female
7/16-20 UNJF-3A male - MS33656-4
M10x1-4h male with 80° internal cone
M10x1-4h male 120° cone
Electrical connection
Hermetic MIL-C-26482 - 6 pins Receptacle
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
Compensated temperature range
-40 to +125°C
Combined thermal zero & sensitivity shifts
±1.5% FS from -40 to +125°C
±3% FS from -40 to +125°C for ranges < 1bar
Size
Compact
Diameter
22mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Non linearity and hysteresis combined
±0.25% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - Compact Pressure Transducer for Harsh Environment - PHE224.pdf
1.2 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 13-03 - PHE224_13-03.STEP
720.52 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 10A-08 - PHE224_10A-08.STEP
9.05 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 10A-03 - PHE224_10A-03.STEP
743.78 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 01-08 - PHE224_01-08.STEP
9.04 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 21-08 - PHE224_21-08.STEP
9.04 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 01-03 - PHE224_01-03.STEP
727.53 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 21-03 - PHE224_21-03.STEP
727.97 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 19-08 - PHE224_19-08.STEP
9.04 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 19-03 - PHE224_19-03.STEP
725.89 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 13-08 - PHE224_13-08.STEP
9.03 Mo
Technical specifications
Product category
High Performance Sensors
Harsh Environment Sensors
Power supply
8 to 30Vdc
Offset
0Vdc ± 0.05Vdc
Sensitivity
5Vdc ± 0.05Vdc
Pressure ranges (FS)
±100mbar
±250mbar
±500mbar
±1bar
2bar
5bar
10bar
20bar
40bar
100bar
250bar
400bar
600bar
±1.5PSI
±3.5PSI
±7PSI
±14.5PSI
30PSI
40PSI
70PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
8000PSI
Type
Absolute
Gage
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
1/4 Gaz A male
1/4 NPT male
M14x1.5-4h male
1/4 Gaz female
7/16-20 UNJF-3A male - MS33656-4
M10x1-4h male with 80° internal cone
M10x1-4h male 120° cone
Electrical connection
Hermetic MIL-C-26482 - 6 pins Receptacle
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
Compensated temperature range
-40 to +125°C
Combined thermal zero & sensitivity shifts
±1.5% FS from -40 to +125°C
±3% FS from -40 to +125°C for ranges < 1bar
Size
Compact
Diameter
22mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Signal bandwidth
DC to 1000Hz @ -3dB
Special Adjustment up to 2000Hz @ -3dB
Non linearity and hysteresis combined
±0.25% FS
±0.1% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - Compact Pressure Transducer for Harsh Environment - PHE227.pdf
1.2 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 13-03 - PHE227_13-03.STEP
720.52 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 10A-08 - PHE227_10A-08.STEP
9.05 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 10A-03 - PHE227_10A-03.STEP
743.78 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 01-08 - PHE227_01-08.STEP
9.04 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 21-08 - PHE227_21-08.STEP
9.04 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 01-03 - PHE227_01-03.STEP
727.53 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 21-03 - PHE227_21-03.STEP
727.97 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 19-08 - PHE227_19-08.STEP
9.04 Mo
3D mockup - Compact Pressure Transducer for Harsh Environment 19-03 - PHE227_19-03.STEP
725.89 Ko
3D mockup - Compact Pressure Transducer for Harsh Environment 13-08 - PHE227_13-08.STEP
9.03 Mo
Technical specifications
Product category
High Performance Sensors
Harsh Environment Sensors
Power supply
8 to 30Vdc
Offset
1Vdc ±0.05
Sensitivity
5Vdc ± 0.05Vdc
Pressure ranges (FS)
±100mbar
±250mbar
±500mbar
±1bar
2bar
5bar
10bar
20bar
40bar
100bar
250bar
400bar
600bar
±1.5PSI
±3.5PSI
±7PSI
±14.5PSI
30PSI
40PSI
70PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
8000PSI
Type
Absolute
Gage
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
1/4 Gaz A male
1/4 NPT male
M14x1.5-4h male
1/4 Gaz female
7/16-20 UNJF-3A male - MS33656-4
M10x1-4h male with 80° internal cone
M10x1-4h male 120° cone
Electrical connection
Hermetic MIL-C-26482 - 6 pins Receptacle
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
Compensated temperature range
-40 to +125°C
Combined thermal zero & sensitivity shifts
±1.5% FS from -40 to +125°C
±3% FS from -40 to +125°C for ranges < 1bar
Size
Compact
Diameter
22mm
Material(s) of wetted parts
Stainless Steel 316L
Stainless steel 15-5PH
Stainless Steel 17-4PH
Signal bandwidth
DC to 1000Hz @ -3dB
Special Adjustment up to 2000Hz @ -3dB
Non linearity and hysteresis combined
±0.25% FS
±0.1% FS
Non repeatability
±0.02% FS typ.
