PGP220

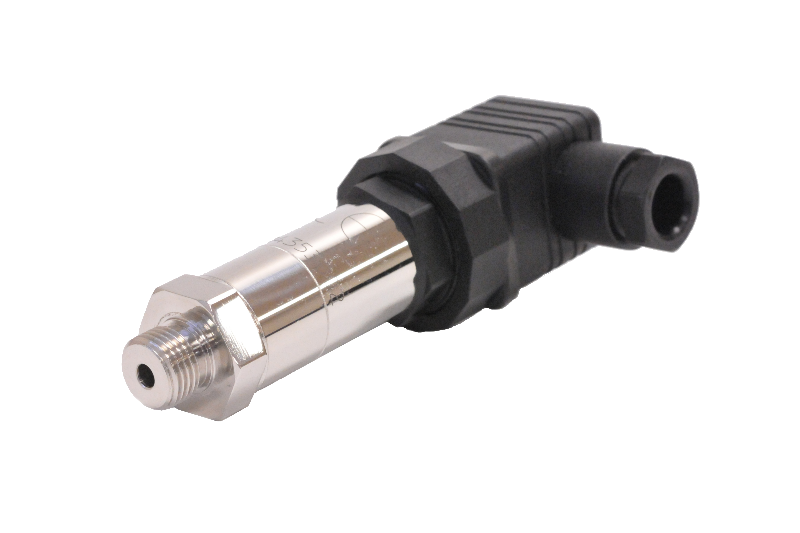

High Performance Pressure Sensor

The PGP220 series is designed for high accuracy pressure measurements, from -1 up to 600bar and above on request
  • Available with Built in Electronic
  • Large choice of connectors & threads
  • High Performance
  • Extreme accuracy : up to 0,05% FS
The PGP220 series is designed for high accuracy pressure measurements, from -1 up to 600bar and above on request. The sensing element is an advanced piezo-resistive pressure module which together with the latest compensation techniques, provides high performance measurements. It is available with low (millivolt) or high level (Vdc, mA) outputs. In the case of transducers, the built-in electronic ensures a correction of the pressure element while delivering an analogue output. Specified at 1kHz @-3dB (higher on request), signal’s bandwidth is not affected by these corrections. Wetted parts being all stainless steel, the sensor is compatible with most media used in Industry, even corrosive ones. High accuracy pressure measurements on test benches is one of the main application for the PGP220 series.

Solutions:

Model

Model
Power supply
Output Signal
Consumption
PDF
PGP221
5 to 15Vdc
mV/V
< 10mA
PGP224
8 to 30Vdc
0-5Vdc
< 10mA
PGP225
12 to 30Vdc
4-20mA
PGP226
15 to 30Vdc
0-10Vdc
< 10mA
PGP227
8 to 30Vdc
0.5-4.5Vdc unregulated power supply
< 10mA
Documents to download
Document's type
Datasheet - High Performance Pressure Sensor - PGP221.pdf
2.82 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
3D mockup - High Performance Pressure Sensor 08-07 - PGP221_08-07.STEP
189.39 Ko
3D mockup - High Performance Pressure Sensor 19-07 - PGP221_19-07.STEP
189.55 Ko
3D mockup - High Performance Pressure Sensor 08-03 - PGP221_08-03.STEP
728.01 Ko
3D mockup - High Performance Pressure Sensor 19-03 - PGP221_19-03.STEP
725.89 Ko
3D mockup - High Performance Pressure Sensor 08-01 - PGP221_08-01.STEP
336.48 Ko
3D mockup - High Performance Pressure Sensor 19-01 - PGP221_19-01.STEP
334.4 Ko
3D mockup - High Performance Pressure Sensor 07-10 - PGP221_07-10.STEP
258.14 Ko
3D mockup - High Performance Pressure Sensor 13-10 - PGP221_13-10.STEP
248.01 Ko
3D mockup - High Performance Pressure Sensor 07-07 - PGP221_07-07.STEP
192.02 Ko
3D mockup - High Performance Pressure Sensor 13-07 - PGP221_13-07.STEP
186.45 Ko
3D mockup - High Performance Pressure Sensor 07-03 - PGP221_07-03.STEP
730.65 Ko
3D mockup - High Performance Pressure Sensor 13-03 - PGP221_13-03.STEP
720.52 Ko
3D mockup - High Performance Pressure Sensor 07-01 - PGP221_07-01.STEP
339.18 Ko
3D mockup - High Performance Pressure Sensor 13-01 - PGP221_13-01.STEP
329.05 Ko
3D mockup - High Performance Pressure Sensor 08-10 - PGP221_08-10.STEP
255.5 Ko
3D mockup - High Performance Pressure Sensor 19-10 - PGP221_19-10.STEP
253.42 Ko
Technical specifications
Product category
Industrial Sensors
Harsh Environment Sensors
Specialty Sensors
High Performance Sensors
Power supply
5 to 15Vdc
Offset
±3%FS
Sensitivity
1.5mV/V ±3%FS
Pressure ranges (FS)
±1bar
-1/+2bar
3bar
5bar
10bar
20bar
40bar
100bar
250bar
400bar
600bar
±14.5PSI
-14.5/+30PSI
40PSI
70PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
8000PSI
Type
Gage
Absolute
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
1/4 Gaz A male
1/4 NPT male
M10x1-4h male with 80° internal cone
M14x1.5-4h male
1/2 Gaz A male (Gauge)
1/4 Gaz female
7/16-20 UNJF-3A male - MS33656-4
M10x1-4h male 120° cone
Electrical connection
DIN 43650 Receptacle - 4 pins
AWG24 double Shield PVC Cable, 4 wires
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
Hermetic MIL-C-26482 - 6 pins Receptacle
Receptacle M12 - 4 pins
Binder 723 Receptacle, 5 pins
Miniature DIN 43650 mPm Receptacle - 4 pins
Hermetic M12 4 pins Receptacle
Compensated temperature range
0 to +60°C
-25 to +85°C
-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)
Combined thermal zero & sensitivity shifts
±0.01% FS/°C
Size
Compact
Diameter
22mm
Material(s) of wetted parts
Stainless steel 15-5PH
Stainless Steel 17-4PH
Stainless Steel 316L
Non linearity and hysteresis combined
±0.25% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - High Performance Pressure Sensor - PGP224.pdf
2.8 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
3D mockup - High Performance Pressure Sensor 08-07 - PGP224_08-07.STEP
189.39 Ko
3D mockup - High Performance Pressure Sensor 19-07 - PGP224_19-07.STEP
189.55 Ko
3D mockup - High Performance Pressure Sensor 08-03 - PGP224_08-03.STEP
728.01 Ko
3D mockup - High Performance Pressure Sensor 19-03 - PGP224_19-03.STEP
725.89 Ko
3D mockup - High Performance Pressure Sensor 08-01 - PGP224_08-01.STEP
336.48 Ko
3D mockup - High Performance Pressure Sensor 19-01 - PGP224_19-01.STEP
334.4 Ko
3D mockup - High Performance Pressure Sensor 07-10 - PGP224_07-10.STEP
258.14 Ko
3D mockup - High Performance Pressure Sensor 13-10 - PGP224_13-10.STEP
248.01 Ko
3D mockup - High Performance Pressure Sensor 07-07 - PGP224_07-07.STEP
192.02 Ko
3D mockup - High Performance Pressure Sensor 13-07 - PGP224_13-07.STEP
186.45 Ko
3D mockup - High Performance Pressure Sensor 07-03 - PGP224_07-03.STEP
730.65 Ko
3D mockup - High Performance Pressure Sensor 13-03 - PGP224_13-03.STEP
720.52 Ko
3D mockup - High Performance Pressure Sensor 07-01 - PGP224_07-01.STEP
339.18 Ko
3D mockup - High Performance Pressure Sensor 13-01 - PGP224_13-01.STEP
329.05 Ko
3D mockup - High Performance Pressure Sensor 08-10 - PGP224_08-10.STEP
255.5 Ko
3D mockup - High Performance Pressure Sensor 19-10 - PGP224_19-10.STEP
253.42 Ko
Technical specifications
Product category
Industrial Sensors
Harsh Environment Sensors
Specialty Sensors
High Performance Sensors
Power supply
8 to 30Vdc
Offset
0Vdc ± 0.05Vdc
Sensitivity
5Vdc ± 0.05Vdc
Pressure ranges (FS)
±1bar
-1/+2bar
3bar
5bar
10bar
20bar
40bar
100bar
250bar
400bar
600bar
±14.5PSI
-14.5/+30PSI
40PSI
70PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
8000PSI
Type
Gage
Absolute
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
1/4 Gaz A male
1/4 NPT male
M10x1-4h male with 80° internal cone
M14x1.5-4h male
1/2 Gaz A male (Gauge)
1/4 Gaz female
7/16-20 UNJF-3A male - MS33656-4
M10x1-4h male 120° cone
Electrical connection
DIN 43650 Receptacle - 4 pins
AWG24 double Shield PVC Cable, 4 wires
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
Hermetic MIL-C-26482 - 6 pins Receptacle
Receptacle M12 - 4 pins
Binder 723 Receptacle, 5 pins
Miniature DIN 43650 mPm Receptacle - 4 pins
Hermetic M12 4 pins Receptacle
Compensated temperature range
0 to +60°C
-25 to +85°C
-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)
Combined thermal zero & sensitivity shifts
±0.01% FS/°C
Size
Compact
Diameter
22mm
Material(s) of wetted parts
Stainless steel 15-5PH
Stainless Steel 17-4PH
Stainless Steel 316L
Signal bandwidth
DC to 1000Hz @ -3dB
Non linearity and hysteresis combined
±0.1% FS
±0.05% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
3D mockup - High Performance Pressure Sensor 08-07 - PGP225_08-07.STEP
189.39 Ko
3D mockup - High Performance Pressure Sensor 19-07 - PGP225_19-07.STEP
189.55 Ko
3D mockup - High Performance Pressure Sensor 08-03 - PGP225_08-03.STEP
728.01 Ko
3D mockup - High Performance Pressure Sensor 19-03 - PGP225_19-03.STEP
725.89 Ko
3D mockup - High Performance Pressure Sensor 08-01 - PGP225_08-01.STEP
336.48 Ko
3D mockup - High Performance Pressure Sensor 19-01 - PGP225_19-01.STEP
334.4 Ko
3D mockup - High Performance Pressure Sensor 07-10 - PGP225_07-10.STEP
258.14 Ko
3D mockup - High Performance Pressure Sensor 13-10 - PGP225_13-10.STEP
248.01 Ko
3D mockup - High Performance Pressure Sensor 07-07 - PGP225_07-07.STEP
192.02 Ko
3D mockup - High Performance Pressure Sensor 13-07 - PGP225_13-07.STEP
186.45 Ko
3D mockup - High Performance Pressure Sensor 07-03 - PGP225_07-03.STEP
730.65 Ko
3D mockup - High Performance Pressure Sensor 13-03 - PGP225_13-03.STEP
720.52 Ko
3D mockup - High Performance Pressure Sensor 07-01 - PGP225_07-01.STEP
339.18 Ko
3D mockup - High Performance Pressure Sensor 13-01 - PGP225_13-01.STEP
329.05 Ko
3D mockup - High Performance Pressure Sensor 08-10 - PGP225_08-10.STEP
255.5 Ko
3D mockup - High Performance Pressure Sensor 19-10 - PGP225_19-10.STEP
253.42 Ko
Technical specifications
Product category
Industrial Sensors
Harsh Environment Sensors
Specialty Sensors
High Performance Sensors
Power supply
12 to 30Vdc
Offset
4mA ±0.1
Sensitivity
16mA
Pressure ranges (FS)
±1bar
-1/+2bar
3bar
5bar
10bar
20bar
40bar
100bar
250bar
400bar
600bar
±14.5PSI
-14.5/+30PSI
40PSI
70PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
8000PSI
Type
Gage
Absolute
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
1/4 Gaz A male
1/4 NPT male
M10x1-4h male with 80° internal cone
M14x1.5-4h male
1/2 Gaz A male (Gauge)
1/4 Gaz female
7/16-20 UNJF-3A male - MS33656-4
M10x1-4h male 120° cone
Electrical connection
DIN 43650 Receptacle - 4 pins
AWG24 double Shield PVC Cable, 4 wires
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
Hermetic MIL-C-26482 - 6 pins Receptacle
Receptacle M12 - 4 pins
Binder 723 Receptacle, 5 pins
Miniature DIN 43650 mPm Receptacle - 4 pins
Hermetic M12 4 pins Receptacle
Compensated temperature range
0 to +60°C
-25 to +85°C
-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)
Combined thermal zero & sensitivity shifts
±0.01% FS/°C
Size
Compact
Diameter
22mm
Material(s) of wetted parts
Stainless steel 15-5PH
Stainless Steel 17-4PH
Stainless Steel 316L
Non linearity and hysteresis combined
±0.1% FS
±0.05% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - High Performance Pressure Sensor - PGP226.pdf
2.8 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
3D mockup - High Performance Pressure Sensor 08-07 - PGP226_08-07.STEP
189.39 Ko
3D mockup - High Performance Pressure Sensor 19-07 - PGP226_19-07.STEP
189.55 Ko
3D mockup - High Performance Pressure Sensor 08-03 - PGP226_08-03.STEP
728.01 Ko
3D mockup - High Performance Pressure Sensor 19-03 - PGP226_19-03.STEP
725.89 Ko
3D mockup - High Performance Pressure Sensor 08-01 - PGP226_08-01.STEP
336.48 Ko
3D mockup - High Performance Pressure Sensor 19-01 - PGP226_19-01.STEP
334.4 Ko
3D mockup - High Performance Pressure Sensor 07-10 - PGP226_07-10.STEP
258.14 Ko
3D mockup - High Performance Pressure Sensor 13-10 - PGP226_13-10.STEP
248.01 Ko
3D mockup - High Performance Pressure Sensor 07-07 - PGP226_07-07.STEP
192.02 Ko
3D mockup - High Performance Pressure Sensor 13-07 - PGP226_13-07.STEP
186.45 Ko
3D mockup - High Performance Pressure Sensor 07-03 - PGP226_07-03.STEP
730.65 Ko
3D mockup - High Performance Pressure Sensor 13-03 - PGP226_13-03.STEP
720.52 Ko
3D mockup - High Performance Pressure Sensor 07-01 - PGP226_07-01.STEP
339.18 Ko
3D mockup - High Performance Pressure Sensor 13-01 - PGP226_13-01.STEP
329.05 Ko
3D mockup - High Performance Pressure Sensor 08-10 - PGP226_08-10.STEP
255.5 Ko
3D mockup - High Performance Pressure Sensor 19-10 - PGP226_19-10.STEP
253.42 Ko
Technical specifications
Product category
Industrial Sensors
Harsh Environment Sensors
Specialty Sensors
High Performance Sensors
Power supply
15 to 30Vdc
Offset
0Vdc ± 0.05Vdc
Sensitivity
10Vdc ±0.05
Pressure ranges (FS)
±1bar
-1/+2bar
3bar
5bar
10bar
20bar
40bar
100bar
250bar
400bar
600bar
±14.5PSI
-14.5/+30PSI
40PSI
70PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
8000PSI
Type
Gage
Absolute
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
1/4 Gaz A male
1/4 NPT male
M10x1-4h male with 80° internal cone
M14x1.5-4h male
1/2 Gaz A male (Gauge)
1/4 Gaz female
7/16-20 UNJF-3A male - MS33656-4
M10x1-4h male 120° cone
Electrical connection
DIN 43650 Receptacle - 4 pins
AWG24 double Shield PVC Cable, 4 wires
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
Hermetic MIL-C-26482 - 6 pins Receptacle
Receptacle M12 - 4 pins
Binder 723 Receptacle, 5 pins
Miniature DIN 43650 mPm Receptacle - 4 pins
Hermetic M12 4 pins Receptacle
Compensated temperature range
0 to +60°C
-25 to +85°C
-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)
Combined thermal zero & sensitivity shifts
±0.01% FS/°C
Size
Compact
Diameter
22mm
Material(s) of wetted parts
Stainless steel 15-5PH
Stainless Steel 17-4PH
Stainless Steel 316L
Signal bandwidth
DC to 1000Hz @ -3dB
Non linearity and hysteresis combined
±0.1% FS
±0.05% FS
Non repeatability
±0.02% FS typ.
Documents to download
Document's type
Datasheet - High Performance Pressure Sensor - PGP227.pdf
2.8 Mo
Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf
2.37 Mo
3D mockup - High Performance Pressure Sensor 08-07 - PGP227_08-07.STEP
189.39 Ko
3D mockup - High Performance Pressure Sensor 19-07 - PGP227_19-07.STEP
189.55 Ko
3D mockup - High Performance Pressure Sensor 08-03 - PGP227_08-03.STEP
728.01 Ko
3D mockup - High Performance Pressure Sensor 19-03 - PGP227_19-03.STEP
725.89 Ko
3D mockup - High Performance Pressure Sensor 08-01 - PGP227_08-01.STEP
336.48 Ko
3D mockup - High Performance Pressure Sensor 19-01 - PGP227_19-01.STEP
334.4 Ko
3D mockup - High Performance Pressure Sensor 07-10 - PGP227_07-10.STEP
258.14 Ko
3D mockup - High Performance Pressure Sensor 13-10 - PGP227_13-10.STEP
248.01 Ko
3D mockup - High Performance Pressure Sensor 07-07 - PGP227_07-07.STEP
192.02 Ko
3D mockup - High Performance Pressure Sensor 13-07 - PGP227_13-07.STEP
186.45 Ko
3D mockup - High Performance Pressure Sensor 07-03 - PGP227_07-03.STEP
730.65 Ko
3D mockup - High Performance Pressure Sensor 13-03 - PGP227_13-03.STEP
720.52 Ko
3D mockup - High Performance Pressure Sensor 07-01 - PGP227_07-01.STEP
339.18 Ko
3D mockup - High Performance Pressure Sensor 13-01 - PGP227_13-01.STEP
329.05 Ko
3D mockup - High Performance Pressure Sensor 08-10 - PGP227_08-10.STEP
255.5 Ko
3D mockup - High Performance Pressure Sensor 19-10 - PGP227_19-10.STEP
253.42 Ko
Technical specifications
Product category
Industrial Sensors
Harsh Environment Sensors
Specialty Sensors
High Performance Sensors
Power supply
8 to 30Vdc
Offset
0.5Vdc ±0.05
Sensitivity
4Vdc ±0.05
Pressure ranges (FS)
±1bar
-1/+2bar
3bar
5bar
10bar
20bar
40bar
100bar
250bar
400bar
600bar
±14.5PSI
-14.5/+30PSI
40PSI
70PSI
150PSI
300PSI
500PSI
1500PSI
3000PSI
5000PSI
8000PSI
Type
Gage
Absolute
Type (for ranges > 40 bar)
Sealed Gage
Mechanical connection
1/4 Gaz A male
1/4 NPT male
M10x1-4h male with 80° internal cone
M14x1.5-4h male
1/2 Gaz A male (Gauge)
1/4 Gaz female
7/16-20 UNJF-3A male - MS33656-4
M10x1-4h male 120° cone
Electrical connection
DIN 43650 Receptacle - 4 pins
AWG24 double Shield PVC Cable, 4 wires
AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires
Hermetic MIL-C-26482 - 6 pins Receptacle
Receptacle M12 - 4 pins
Binder 723 Receptacle, 5 pins
Miniature DIN 43650 mPm Receptacle - 4 pins
Hermetic M12 4 pins Receptacle
Compensated temperature range
0 to +60°C
-25 to +85°C
-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)
Combined thermal zero & sensitivity shifts
±0.01% FS/°C
Size
Compact
Diameter
22mm
Material(s) of wetted parts
Stainless steel 15-5PH
Stainless Steel 17-4PH
Stainless Steel 316L
Signal bandwidth
DC to 1000Hz @ -3dB
Non linearity and hysteresis combined
±0.1% FS
±0.05% FS
Non repeatability
±0.02% FS typ.

Scroll to Top
