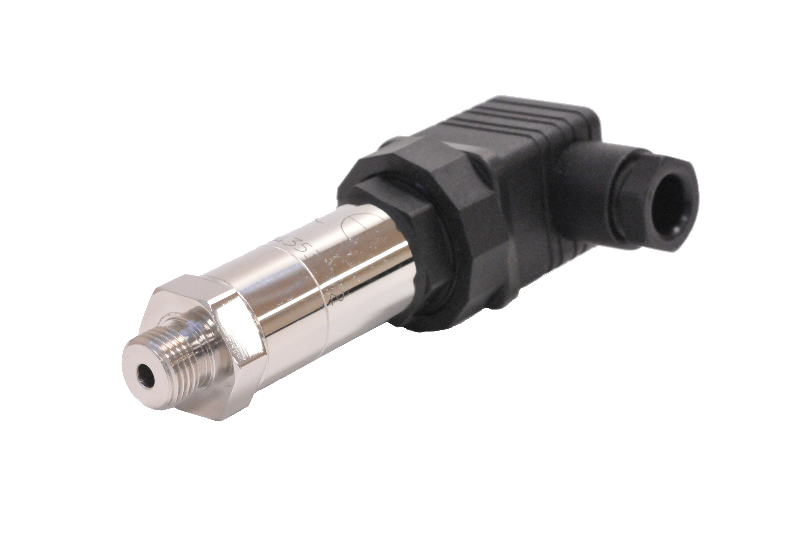

PST220
Universal Industrial Pressure Sensor

The PST220 series is designed for absolute or gage pressure measurements from 50mbar up to 600bar

Available with or without built-in electronics
Large choice of connectors & threads
All Stainless steel
Large Bandwidth

The PST220 series is designed for absolute or gage pressure measurements from 50mbar up to 600bar. With all stainless steel wetted parts, it is compatible with most fluids used in the industry including corrosive ones. Manufactured with proven components ensuring accuracy and reliability, the PST220 is compatible with most application thanks to a large choice of mechanical and electrical connections.

Model

Power supply

Output Signal

Consumption

PDF

PST221

5 to15Vdc stabilized and filtered

mV/V

< 10mA

PST224

8 to 30Vdc

0-5Vdc

< 10mA

PST225

13 to 30Vdc

4-20mA

Current loop

PST226

15 to 30Vdc

0-10Vdc

< 10mA

PST227

8 to 30Vdc

0.5-4.5Vdc unregulated power supply

< 10mA

Documents to download

Document's type

Datasheet - Universal Industrial Pressure Sensor - PST221.pdf

600.07 Ko

Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf

2.36 Mo

3D mockup - Universal Industrial Pressure Sensor 08-07 - PST221_08-07.STEP

189.39 Ko

3D mockup - Universal Industrial Pressure Sensor 19-01 - PST221_19-01.STEP

334.4 Ko

3D mockup - Universal Industrial Pressure Sensor 08-03 - PST221_08-03.STEP

728.01 Ko

3D mockup - Universal Industrial Pressure Sensor 13-10 - PST221_13-10.STEP

248.01 Ko

3D mockup - Universal Industrial Pressure Sensor 08-01 - PST221_08-01.STEP

336.48 Ko

3D mockup - Universal Industrial Pressure Sensor 13-08 - PST221_13-08.STEP

9.03 Mo

3D mockup - Universal Industrial Pressure Sensor 07-10 - PST221_07-10.STEP

258.14 Ko

3D mockup - Universal Industrial Pressure Sensor 13-07 - PST221_13-07.STEP

186.45 Ko

3D mockup - Universal Industrial Pressure Sensor 07-08 - PST221_07-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 13-03 - PST221_13-03.STEP

720.52 Ko

3D mockup - Universal Industrial Pressure Sensor 19-10 - PST221_19-10.STEP

253.42 Ko

3D mockup - Universal Industrial Pressure Sensor 07-07 - PST221_07-07.STEP

192.02 Ko

3D mockup - Universal Industrial Pressure Sensor 13-01 - PST221_13-01.STEP

329.05 Ko

3D mockup - Universal Industrial Pressure Sensor 19-08 - PST221_19-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 07-03 - PST221_07-03.STEP

730.65 Ko

3D mockup - Universal Industrial Pressure Sensor 08-10 - PST221_08-10.STEP

255.5 Ko

3D mockup - Universal Industrial Pressure Sensor 19-07 - PST221_19-07.STEP

189.55 Ko

3D mockup - Universal Industrial Pressure Sensor 07-01 - PST221_07-01.STEP

339.18 Ko

3D mockup - Universal Industrial Pressure Sensor 08-08 - PST221_08-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 19-03 - PST221_19-03.STEP

725.89 Ko

Technical specifications

Product category

Industrial Sensors

Power supply

5 to15Vdc stabilized and filtered

Offset

±3%FS

Sensitivity (FS < 700mbar)

3 to 6mV/V

Sensitivity (700mbar <FS< = 2bar)

6 to 10mV/V

Sensitivity (FS > 2bar)

2 to 5mV/V

Pressure ranges (FS)

±50mbar

100mbar

250mbar

500mbar

±1bar

5bar

10bar

20bar

40bar

100bar

250bar

400bar

600bar

±1PSI

±1.5PSI

±3.5PSI

±7PSI

±14.5PSI

500PSI

8000PSI

Operational mode

Absolute

Type (for ranges > 40 bar)

Sealed Gage

Mechanical connection

1/4 Gaz A male

1/4 NPT male

1/2 Gaz A male (manometer)

1/4 Gaz female

7/16-20 UNJF-3A male - MS33656-4

M10x1-4h male with 80° internal cone

M10x1-4h male 120° cone

M14x1.5-4h male with 60° internal cone

Electrical connection

DIN 43650 Receptacle - 4 pins

Hermetic MIL-C-26482 - 6 pins Receptacle

Receptacle M12 - 4 pins

Binder 723 Receptacle, 5 pins

Miniature DIN 43650 mPm Receptacle - 4 pins

Hermetic M12 4 pins Receptacle

AWG24 double Shield PVC Cable, 4 wires

AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires

Compensated temperature range

0 to +60°C

-25 to +85°C

-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)

Combined thermal zero & sensitivity shifts

±0.02% FS/°C

Size

Industrial

Diameter

22mm

Material(s) of wetted parts

Stainless steel 15-5PH

Stainless Steel 17-4PH

Stainless Steel 316L

Non linearity and hysteresis combined

±0.25% FS

Non repeatability

±0.02% FS typ.

Documents to download

Document's type

Datasheet - Universal Industrial Pressure Sensor - PST224.pdf

598.39 Ko

Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf

2.36 Mo

3D mockup - Universal Industrial Pressure Sensor 08-07 - PST224_08-07.STEP

189.39 Ko

3D mockup - Universal Industrial Pressure Sensor 19-01 - PST224_19-01.STEP

334.4 Ko

3D mockup - Universal Industrial Pressure Sensor 08-03 - PST224_08-03.STEP

728.01 Ko

3D mockup - Universal Industrial Pressure Sensor 13-10 - PST224_13-10.STEP

248.01 Ko

3D mockup - Universal Industrial Pressure Sensor 08-01 - PST224_08-01.STEP

336.48 Ko

3D mockup - Universal Industrial Pressure Sensor 13-08 - PST224_13-08.STEP

9.03 Mo

3D mockup - Universal Industrial Pressure Sensor 07-10 - PST224_07-10.STEP

258.14 Ko

3D mockup - Universal Industrial Pressure Sensor 13-07 - PST224_13-07.STEP

186.45 Ko

3D mockup - Universal Industrial Pressure Sensor 07-08 - PST224_07-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 13-03 - PST224_13-03.STEP

720.52 Ko

3D mockup - Universal Industrial Pressure Sensor 19-10 - PST224_19-10.STEP

253.42 Ko

3D mockup - Universal Industrial Pressure Sensor 07-07 - PST224_07-07.STEP

192.02 Ko

3D mockup - Universal Industrial Pressure Sensor 13-01 - PST224_13-01.STEP

329.05 Ko

3D mockup - Universal Industrial Pressure Sensor 19-08 - PST224_19-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 07-03 - PST224_07-03.STEP

730.65 Ko

3D mockup - Universal Industrial Pressure Sensor 08-10 - PST224_08-10.STEP

255.5 Ko

3D mockup - Universal Industrial Pressure Sensor 19-07 - PST224_19-07.STEP

189.55 Ko

3D mockup - Universal Industrial Pressure Sensor 07-01 - PST224_07-01.STEP

339.18 Ko

3D mockup - Universal Industrial Pressure Sensor 08-08 - PST224_08-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 19-03 - PST224_19-03.STEP

725.89 Ko

Technical specifications

Product category

Industrial Sensors

Power supply

8 to 30Vdc

Offset

0Vdc ± 0.05

Sensitivity

5Vdc ± 0.05

Pressure ranges (FS)

±50mbar

100mbar

250mbar

500mbar

±1bar

5bar

10bar

20bar

40bar

100bar

250bar

400bar

600bar

±1PSI

±1.5PSI

±3.5PSI

±7PSI

±14.5PSI

500PSI

8000PSI

Operational mode

Absolute

Type (for ranges > 40 bar)

Sealed Gage

Mechanical connection

1/4 Gaz A male

1/4 NPT male

1/2 Gaz A male (manometer)

1/4 Gaz female

7/16-20 UNJF-3A male - MS33656-4

M10x1-4h male with 80° internal cone

M10x1-4h male 120° cone

M14x1.5-4h male with 60° internal cone

Electrical connection

DIN 43650 Receptacle - 4 pins

Hermetic MIL-C-26482 - 6 pins Receptacle

Receptacle M12 - 4 pins

Binder 723 Receptacle, 5 pins

Miniature DIN 43650 mPm Receptacle - 4 pins

Hermetic M12 4 pins Receptacle

AWG24 double Shield PVC Cable, 4 wires

AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires

Compensated temperature range

0 to +60°C

-25 to +85°C

-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)

Combined thermal zero & sensitivity shifts

±0.02% FS/°C

Size

Industrial

Diameter

22mm

Material(s) of wetted parts

Stainless steel 15-5PH

Stainless Steel 17-4PH

Stainless Steel 316L

Signal bandwidth

DC to 1000Hz @ -3dB

Non linearity and hysteresis combined

±0.25% FS

Non repeatability

±0.02% FS typ.

Documents to download

Document's type

Datasheet - Universal Industrial Pressure Sensor - PST225.pdf

596.43 Ko

Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf

2.36 Mo

3D mockup - Universal Industrial Pressure Sensor 08-07 - PST225_08-07.STEP

189.39 Ko

3D mockup - Universal Industrial Pressure Sensor 19-01 - PST225_19-01.STEP

334.4 Ko

3D mockup - Universal Industrial Pressure Sensor 08-03 - PST225_08-03.STEP

728.01 Ko

3D mockup - Universal Industrial Pressure Sensor 13-10 - PST225_13-10.STEP

248.01 Ko

3D mockup - Universal Industrial Pressure Sensor 08-01 - PST225_08-01.STEP

336.48 Ko

3D mockup - Universal Industrial Pressure Sensor 13-08 - PST225_13-08.STEP

9.03 Mo

3D mockup - Universal Industrial Pressure Sensor 07-10 - PST225_07-10.STEP

258.14 Ko

3D mockup - Universal Industrial Pressure Sensor 13-07 - PST225_13-07.STEP

186.45 Ko

3D mockup - Universal Industrial Pressure Sensor 07-08 - PST225_07-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 13-03 - PST225_13-03.STEP

720.52 Ko

3D mockup - Universal Industrial Pressure Sensor 19-10 - PST225_19-10.STEP

253.42 Ko

3D mockup - Universal Industrial Pressure Sensor 07-07 - PST225_07-07.STEP

192.02 Ko

3D mockup - Universal Industrial Pressure Sensor 13-01 - PST225_13-01.STEP

329.05 Ko

3D mockup - Universal Industrial Pressure Sensor 19-08 - PST225_19-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 07-03 - PST225_07-03.STEP

730.65 Ko

3D mockup - Universal Industrial Pressure Sensor 08-10 - PST225_08-10.STEP

255.5 Ko

3D mockup - Universal Industrial Pressure Sensor 19-07 - PST225_19-07.STEP

189.55 Ko

3D mockup - Universal Industrial Pressure Sensor 07-01 - PST225_07-01.STEP

339.18 Ko

3D mockup - Universal Industrial Pressure Sensor 08-08 - PST225_08-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 19-03 - PST225_19-03.STEP

725.89 Ko

Technical specifications

Product category

Industrial Sensors

Power supply

13 to 30Vdc

Offset

4mA ±0.1

Sensitivity

16mA ±0.1

Pressure ranges (FS)

±50mbar

100mbar

250mbar

500mbar

±1bar

5bar

10bar

20bar

40bar

100bar

250bar

400bar

600bar

±1PSI

±1.5PSI

±3.5PSI

±7PSI

±14.5PSI

500PSI

8000PSI

Operational mode

Absolute

Type (for ranges > 40 bar)

Sealed Gage

Mechanical connection

1/4 Gaz A male

1/4 NPT male

1/2 Gaz A male (manometer)

1/4 Gaz female

7/16-20 UNJF-3A male - MS33656-4

M10x1-4h male with 80° internal cone

M10x1-4h male 120° cone

M14x1.5-4h male with 60° internal cone

Electrical connection

DIN 43650 Receptacle - 4 pins

Hermetic MIL-C-26482 - 6 pins Receptacle

Receptacle M12 - 4 pins

Binder 723 Receptacle, 5 pins

Miniature DIN 43650 mPm Receptacle - 4 pins

Hermetic M12 4 pins Receptacle

AWG24 double Shield PVC Cable, 4 wires

AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires

Compensated temperature range

0 to +60°C

-25 to +85°C

-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)

Combined thermal zero & sensitivity shifts

±0.02% FS/°C

Size

Industrial

Diameter

22mm

Material(s) of wetted parts

Stainless steel 15-5PH

Stainless Steel 17-4PH

Stainless Steel 316L

Signal bandwidth

DC to 1000Hz @ -3dB

Non linearity and hysteresis combined

±0.25% FS

Non repeatability

±0.02% FS typ.

Documents to download

Document's type

Datasheet - Universal Industrial Pressure Sensor - PST226.pdf

598.46 Ko

Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf

2.36 Mo

3D mockup - Universal Industrial Pressure Sensor 08-07 - PST226_08-07.STEP

189.39 Ko

3D mockup - Universal Industrial Pressure Sensor 19-01 - PST226_19-01.STEP

334.4 Ko

3D mockup - Universal Industrial Pressure Sensor 08-03 - PST226_08-03.STEP

728.01 Ko

3D mockup - Universal Industrial Pressure Sensor 13-10 - PST226_13-10.STEP

248.01 Ko

3D mockup - Universal Industrial Pressure Sensor 08-01 - PST226_08-01.STEP

336.48 Ko

3D mockup - Universal Industrial Pressure Sensor 13-08 - PST226_13-08.STEP

9.03 Mo

3D mockup - Universal Industrial Pressure Sensor 07-10 - PST226_07-10.STEP

258.14 Ko

3D mockup - Universal Industrial Pressure Sensor 13-07 - PST226_13-07.STEP

186.45 Ko

3D mockup - Universal Industrial Pressure Sensor 07-08 - PST226_07-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 13-03 - PST226_13-03.STEP

720.52 Ko

3D mockup - Universal Industrial Pressure Sensor 19-10 - PST226_19-10.STEP

253.42 Ko

3D mockup - Universal Industrial Pressure Sensor 07-07 - PST226_07-07.STEP

192.02 Ko

3D mockup - Universal Industrial Pressure Sensor 13-01 - PST226_13-01.STEP

329.05 Ko

3D mockup - Universal Industrial Pressure Sensor 19-08 - PST226_19-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 07-03 - PST226_07-03.STEP

730.65 Ko

3D mockup - Universal Industrial Pressure Sensor 08-10 - PST226_08-10.STEP

255.5 Ko

3D mockup - Universal Industrial Pressure Sensor 19-07 - PST226_19-07.STEP

189.55 Ko

3D mockup - Universal Industrial Pressure Sensor 07-01 - PST226_07-01.STEP

339.18 Ko

3D mockup - Universal Industrial Pressure Sensor 08-08 - PST226_08-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 19-03 - PST226_19-03.STEP

725.89 Ko

Technical specifications

Product category

Industrial Sensors

Power supply

15 to 30Vdc

Offset

0Vdc ± 0.05

Sensitivity

10Vdc ±0.05

Pressure ranges (FS)

±50mbar

100mbar

250mbar

500mbar

±1bar

5bar

10bar

20bar

40bar

100bar

250bar

400bar

600bar

±1PSI

±1.5PSI

±3.5PSI

±7PSI

±14.5PSI

500PSI

8000PSI

Operational mode

Absolute

Type (for ranges > 40 bar)

Sealed Gage

Mechanical connection

1/4 Gaz A male

1/4 NPT male

1/2 Gaz A male (manometer)

1/4 Gaz female

7/16-20 UNJF-3A male - MS33656-4

M10x1-4h male with 80° internal cone

M10x1-4h male 120° cone

M14x1.5-4h male with 60° internal cone

Electrical connection

DIN 43650 Receptacle - 4 pins

Hermetic MIL-C-26482 - 6 pins Receptacle

Receptacle M12 - 4 pins

Binder 723 Receptacle, 5 pins

Miniature DIN 43650 mPm Receptacle - 4 pins

Hermetic M12 4 pins Receptacle

AWG24 double Shield PVC Cable, 4 wires

AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires

Compensated temperature range

0 to +60°C

-25 to +85°C

-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)

Combined thermal zero & sensitivity shifts

±0.02% FS/°C

Size

Industrial

Diameter

22mm

Material(s) of wetted parts

Stainless steel 15-5PH

Stainless Steel 17-4PH

Stainless Steel 316L

Signal bandwidth

DC to 1000Hz @ -3dB

Non linearity and hysteresis combined

±0.25% FS

Non repeatability

±0.02% FS typ.

Documents to download

Document's type

Datasheet - Universal Industrial Pressure Sensor - PST227.pdf

598.41 Ko

Mechanical Recommendations - Guide for installation of EFE pressure sensors - RMP-01.pdf

2.36 Mo

3D mockup - Universal Industrial Pressure Sensor 08-07 - PST227_08-07.STEP

189.39 Ko

3D mockup - Universal Industrial Pressure Sensor 19-01 - PST227_19-01.STEP

334.4 Ko

3D mockup - Universal Industrial Pressure Sensor 08-03 - PST227_08-03.STEP

728.01 Ko

3D mockup - Universal Industrial Pressure Sensor 13-10 - PST227_13-10.STEP

248.01 Ko

3D mockup - Universal Industrial Pressure Sensor 08-01 - PST227_08-01.STEP

336.48 Ko

3D mockup - Universal Industrial Pressure Sensor 13-08 - PST227_13-08.STEP

9.03 Mo

3D mockup - Universal Industrial Pressure Sensor 07-10 - PST227_07-10.STEP

258.14 Ko

3D mockup - Universal Industrial Pressure Sensor 13-07 - PST227_13-07.STEP

186.45 Ko

3D mockup - Universal Industrial Pressure Sensor 07-08 - PST227_07-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 13-03 - PST227_13-03.STEP

720.52 Ko

3D mockup - Universal Industrial Pressure Sensor 19-10 - PST227_19-10.STEP

253.42 Ko

3D mockup - Universal Industrial Pressure Sensor 07-07 - PST227_07-07.STEP

192.02 Ko

3D mockup - Universal Industrial Pressure Sensor 13-01 - PST227_13-01.STEP

329.05 Ko

3D mockup - Universal Industrial Pressure Sensor 19-08 - PST227_19-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 07-03 - PST227_07-03.STEP

730.65 Ko

3D mockup - Universal Industrial Pressure Sensor 08-10 - PST227_08-10.STEP

255.5 Ko

3D mockup - Universal Industrial Pressure Sensor 19-07 - PST227_19-07.STEP

189.55 Ko

3D mockup - Universal Industrial Pressure Sensor 07-01 - PST227_07-01.STEP

339.18 Ko

3D mockup - Universal Industrial Pressure Sensor 08-08 - PST227_08-08.STEP

9.04 Mo

3D mockup - Universal Industrial Pressure Sensor 19-03 - PST227_19-03.STEP

725.89 Ko

Technical specifications

Product category

Industrial Sensors

Power supply

8 to 30Vdc

Offset

0.5Vdc ±0.05

Sensitivity

4Vdc ±0.05

Pressure ranges (FS)

±50mbar

100mbar

250mbar

500mbar

±1bar

5bar

10bar

20bar

40bar

100bar

250bar

400bar

600bar

±1PSI

±1.5PSI

±3.5PSI

±7PSI

±14.5PSI

500PSI

8000PSI

Operational mode

Absolute

Type (for ranges > 40 bar)

Sealed Gage

Mechanical connection

1/4 Gaz A male

1/4 NPT male

1/2 Gaz A male (manometer)

1/4 Gaz female

7/16-20 UNJF-3A male - MS33656-4

M10x1-4h male with 80° internal cone

M10x1-4h male 120° cone

M14x1.5-4h male with 60° internal cone

Electrical connection

DIN 43650 Receptacle - 4 pins

Hermetic MIL-C-26482 - 6 pins Receptacle

Receptacle M12 - 4 pins

Binder 723 Receptacle, 5 pins

Miniature DIN 43650 mPm Receptacle - 4 pins

Hermetic M12 4 pins Receptacle

AWG24 double Shield PVC Cable, 4 wires

AWG26 Viton jacketed shielded cable, Ø2.8mm ±0.2mm, 4 wires

Compensated temperature range

0 to +60°C

-25 to +85°C

-25 to +125°C (Except M12, 723 Receptacles and PVC Cable)

Combined thermal zero & sensitivity shifts

±0.02% FS/°C

Size

Industrial

Diameter

22mm

Material(s) of wetted parts

Stainless steel 15-5PH

Stainless Steel 17-4PH

Stainless Steel 316L

Signal bandwidth

DC to 1000Hz @ -3dB

Non linearity and hysteresis combined

±0.25% FS

Non repeatability

±0.02% FS typ.

Check also

High Performance Miniature Pressure Sensor

PGP160

High Performance Pressure Sensor

PGP220

High Accuracy Pressure Sensor

PTA220

Industrial Pressure Sensor for Accurate Measurements

PDS220

PST220 Universal Industrial Pressure Sensor

Model

PST220
Universal Industrial Pressure Sensor
